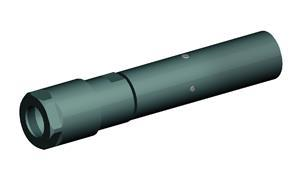

3/4 in. Dia. x 4.50 in. OAL 1/64 to 25/64 in. Collet Capacity Double Angle Double Pin Straight Shank Floating Holder

  • Item Code: SS075DP208448
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for machining centers
    • It provides 0,10mm (.004") movement in all directions to compensate for angular and parallel misalignments
    • Minimum outside diameter and overhang provide maximum tool clearance

Tech Specs

Back To Top
Gage Length (mm) 36.30 mm
Gage Length (in.) 1.4300"
Overall Length (mm) 114.10 mm
Overall Length (in.) 4.4900"
Lock Nut Dia. (mm) 23.8 mm
Lock Nut Dia. (in.) 0.9400"
Brand Widia-Erickson
Adapter/Shank/Bore Dia (in.) 0.7500"
Adapter/Shank/Bore Dia (mm) 19.05 mm
Coolant Thru No
Collet Series DA200
