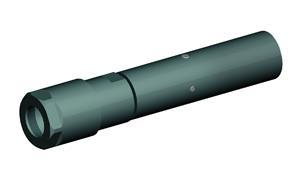

1 in. Dia. x 6.97 in. OAL 1/64 to 25/64 in. Double Angle Double Pin Straight Shank Floating Holder

  • Item Code: SS100DP208448
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for machining centers
    • It provides 0,10mm (.004") movement in all directions to compensate for angular and parallel misalignments
    • Minimum outside diameter and overhang provide maximum tool clearance

Tech Specs

Back To Top
Lock Nut Dia. (mm) 23.813 mm
Lock Nut Dia. (in.) 0.9375"
Coolant Thru No
Overall Length (in.) 4.4900"
Adapter/Shank/Bore Dia (in.) 1.0000"
Brand Widia-Erickson
Collet Series DA200
Overall Length (mm) 114.10 mm
Adapter/Shank/Bore Dia (mm) 25.40 mm
