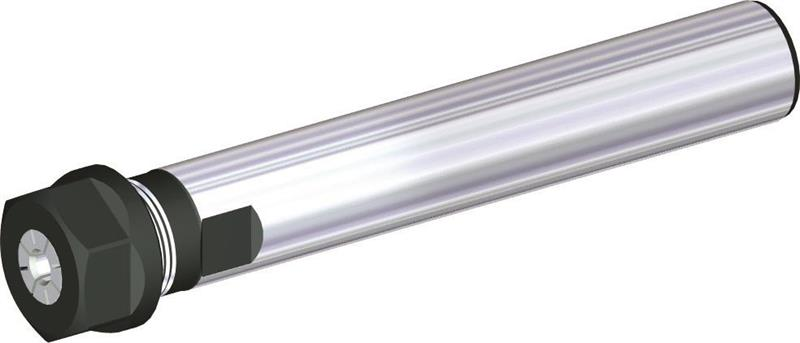

0.02 to 0.5 Inch Collet Capacity, 1 Inch Straight Shank, Series ER20 Collet Chuck
- Item Code: SS100ER20700
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER20
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
Tech Specs
Back To Top| Adjustment Range | 2.2000 Inch |
|---|---|
| Clamping Length | 1.3000 Inch |
| Nut Diameter | 1.3390 Inch |
| Shank Length | 5.7000 Inch |
| Hand of Tool | Neutral |
| Shank Style | Straight |
| Brand | WIDIA-Erickson |
| Shank Diameter | 1 Inch |
| Product Name | Collet Chucks |
| Overall Length | 7 Inch |
