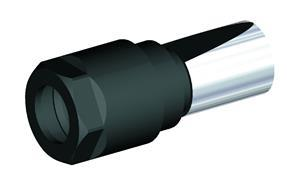

#0 to 1/2 in. Straight Shank Double Angle Tap Chuck

  • Item Code: SS100STL169
  • Brand: WIDIA
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Industry standard Erickson� double-angle collet system
    • Small outside diameter clearance is ideal for machining centers, close center-distance, and fixture issues
    • Solid drive/positive drive collets prevent tap slippage
    • Right- or left-hand tapping capability
    • Economical to use

Tech Specs

Back To Top
Tap Range (mm) M4.5 - M22
Overall Length (mm) 81.51 mm
Overall Length (in.) 3.2090"
Clamping Hole Length (mm) 6.35 mm
Clamping Hole Length (in.) 0.2500"
Lock Nut Dia. (mm) 38.00 mm
Adapter/Shank/Bore Dia (mm) 25.40 mm
Collet Series L
Brand WIDIA
Adapter/Shank/Bore Dia (in.) 1.0000"
Lock Nut Dia. (in.) 1.5000"
Coolant Thru Yes
