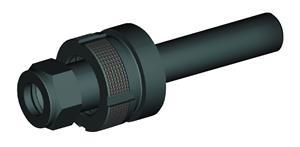

1-1/2 in. Dia. x 6.88 in. OAL 1/64 to 3/4 in. Collet Capacity Double Angle Double Pin Straight Shank Fully Floating Holder

  • Item Code: SS150FC188688
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Recommended only for stationary applications (lathe)
    • Toolholder provides 0,25mm (.010") movement in all directions to compensate for angular and parallel misalignments
    • Hollow design enables coolant through the tool and short projection lengths
    • Adjusting nut varies spring tension to compensate for cutter weight

Tech Specs

Back To Top
Gage Length (mm) 73.025 mm
Gage Length (in.) 2.8750"
Overall Length (mm) 174.625 mm
Overall Length (in.) 6.8750"
Lock Nut Dia. (mm) 43.942 mm
Lock Nut Dia. (in.) 1.7300"
Adapter/Shank/Bore Dia (in.) 1.5000"
Adapter/Shank/Bore Dia (mm) 38.10 mm
Collet Series DA180
Brand Widia-Erickson
Coolant Thru Yes
