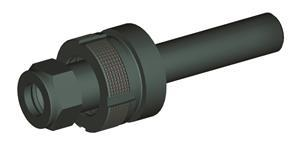

1/64 to 3/4 Inch Collet Capacity, 2.88 Inch Projection, Straight Shank, Series DA180, Double Angle Reamer Collet Chuck
- Item Code: SS150FC188888
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series DA180
Industry-standard Erickson™ double-angle collet system collet system
Features
Back To Top- Original Erickson standard
- Versatile double-angle design providing approximately 1:1 grip
- Bonded style available for through-coolant applications
- Non-pullout style to captivate Weldon®-style end mills
- Dedicated versions for tapping €” driving off the square of the tap. Double
Tech Specs
Back To Top| Adapter Style Machine Side | Straight-Cylindrical |
|---|---|
| Body Diameter 1 Workpce Side (mm) | 60.320 |
| Body Diameter Machine Side (In) | 2.3750 |
| Body Diameter Machine Side (mm) | 60.320 |
| Gage Length 1 (Metric) | 73.020 |
| Overall Length (Inch) | 8.8750 |
| Overall Length (Metric) | 225.420 |
| Shank Length (Inch) | 6.0000 |
| Shank Length (Metric) | 152.400 |
| Adapter Type Machine Side | Cylindrical |
| Adapter/Shank/Bore Diameter (Fractional) | 1 1/2 |
| Adapter/Shank/Bore Diameter (mm) | 38.100 |
| Gage Length 1 (Inch) | 2.8750 |
| Units of Tool (Extract) | B - Both Metric & Inch |
| Adapter Size Workpiece Side | 0180 |
| Brand | WIDIA-Erickson |
| Adapter Type Machine Side-EPP | ZYL - Cylindrical Adapter |
| Adapter Style Machine Side-EPP | ZYL-01 Straight Shank |
| Adapter/Shank/Bore Diameter (Inch) | 1.5000 |
| Body Diameter 1 Workpce Side (In) | 2.3750 |
| Adapter Size Machine Side-EPP | 1500 |
| Series | DA180 |
