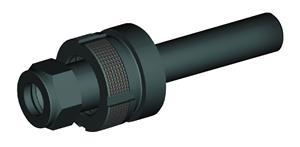

1.726 in. x 8.875 in. OAL x 6.00 in. Shank Stainless Steel Fully Floating Holder

  • Item Code: SS200FC188888
  • Brand: Widia-Erickson
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Grip 1:1
    • Industry standard Erickson?� double-angle collet system
    • Recommended only for stationary applications (lathe)
    • Toolholder provides 0,25mm (.010") movement in all directions to compensate for angular and parallel misalignments

Tech Specs

Back To Top
Gage Length (mm) 73.02 mm
Overall Length (mm) 225.42 mm
Overall Length (in.) 8.8750"
Clamping Hole Length (mm) 21.43 mm
Clamping Hole Length (in.) 0.8440"
Collet Series DA180
Lock Nut Dia. (mm) 43.85 mm
Lock Nut Dia. (in.) 1.7260"
Brand Widia-Erickson
Gage Length (in.) 2.8750"
Adapter/Shank/Bore Dia (in.) 2.0000"
Adapter/Shank/Bore Dia (mm) 50.80 mm
Coolant Thru Yes
