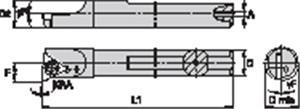

1 Inch Dia. x 10.000 Inch Overall Length x 1.100 Inch Min Dia. S-Clamp RH Boring Bar
- Item Code: SSBI1000105R
- Brand: WIDIA
- Unit Size: 1
Description
Small Hole Boring Bars for Turning
Clamping System S - Steel
Tech Specs
Back To Top| Head Length | 1.2500 Inch |
|---|---|
| Insert Style | SSBI |
| Shank Length | 8.7500 Inch |
| Tool Length | 10 Inch |
| Axial Rake Angle | 5 Degree |
| Brand | WIDIA |
| Drive Size | T10 |
| Lead Angle | -5 Degree |
| Unit of Measure | Inch |
| Cutting Height | 0.0075 Inch |
| Shank Diameter | 1 Inch |
| Min Bore Diameter | 1.1000 Inch |
| Overall Length | 10 Inch |
| Insert Shape | Triangle |
| Grade | WG |
| Hand of Tool | Right |
| Included Angle | 60 |
| Product Type | Boring Bar |
