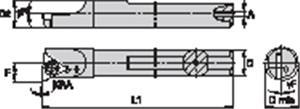

5/8 Inch Dia. x 7.000 Inch Overall Length x 0.720 Inch Min Dia. S-Clamp RH Boring Bar
- Item Code: SSBI62575R-WG
- Brand: WIDIA
- Unit Size: 1
Description
Small Hole Boring Bars for Turning
Clamping System S - Steel
Tech Specs
Back To Top| Shank Length | 5.7500 Inch |
|---|---|
| Tool Length | 7 Inch |
| Cutting Height | 0.0075 Inch |
| Hand of Tool | Right |
| Head Length | 1.2500 Inch |
| Insert Style | SSBI |
| Lead Angle | -5 Degree |
| Shank Diameter | 5/8 Inch |
| Axial Rake Angle | 5 Degree |
| Brand | WIDIA |
| Unit of Measure | Inch |
| Insert Shape | Triangle |
| Min Bore Diameter | 0.7200 Inch |
| Grade | WG |
| Included Angle | 60 |
| Overall Length | 7 Inch |
| Product Type | Boring Bar |
| Drive Size | T10 |
