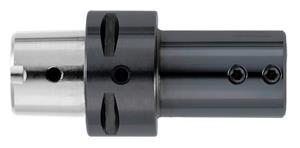

0.2500 in. (1/4) Bore Diameter x 3.70 in. Overall Length Standard Holder

  • Item Code: ST-250-C6
  • Brand: Micro 100
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • PSC Holders combines a Capto® compatible connection with our Standard shank ID system
    • Tool holder optimized for use with Micro 100 standard shank tools in turning applications
    • PSC flange designed for use on lathes with or without an automatic tool changer
    • Short head length accommodates smaller work envelopes and provides maximum rigidity
    • Heat treated for added durability
    • Black oxide coated on all non-ground surfaces for corrosion resistance
    • Tool holder includes: hex wrench, locating/locking screw

Tech Specs

Back To Top
Brand Micro 100
Head Width 0.866"
Overall Length 3.70"
Overall Reach 1.340"
Shank Length 1.496"
Thread Size M20 x 2.0
Tool Holder Bore Diameter 0.2500" (1/4)
Type C6
Coating/Finish None
Product Type Standard Holder
