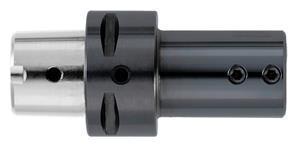

0.5000 in. (1/2) Bore Diameter x 3.26 in. Overall Length Standard Holder

  • Item Code: ST-500-C4
  • Brand: Micro 100
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • PSC Holders combines a Capto® compatible connection with our Standard shank ID system
    • Tool holder optimized for use with Micro 100 standard shank tools in turning applications
    • PSC flange designed for use on lathes with or without an automatic tool changer
    • Short head length accommodates smaller work envelopes and provides maximum rigidity
    • Heat treated for added durability
    • Black oxide coated on all non-ground surfaces for corrosion resistance
    • Tool holder includes: hex wrench, locating/locking screw

Tech Specs

Back To Top
Brand Micro 100
Head Width 0.984"
Overall Length 3.26"
Overall Reach 1.528"
Shank Length 0.945"
Thread Size M14 x 1.5
Tool Holder Bore Diameter 0.5000" (1/2)
Type C4
Coating/Finish None
Product Type Standard Holder
