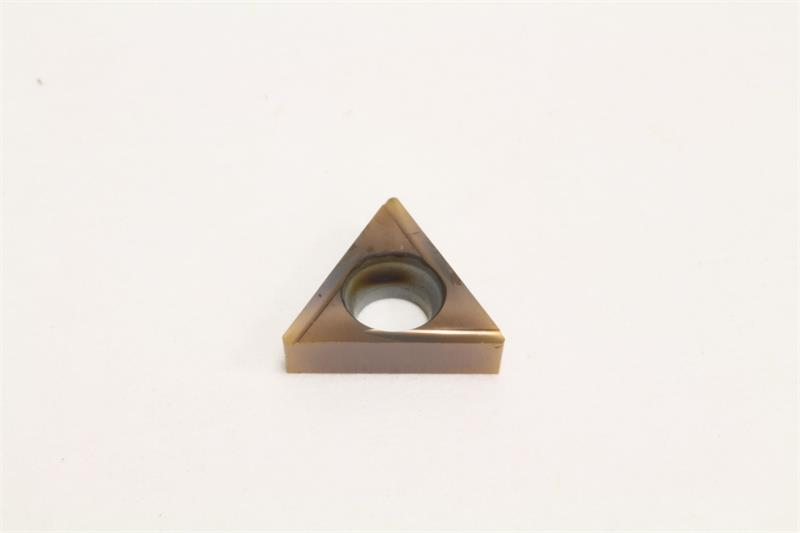

TBGT520.5 FX AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TBGT520.5LFX AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style TBGT
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0078 Inch
Inscribed Circle 0.0156 Inch
Mounting Hole Diameter 0.0900 Inch
Shape Triangular
Included Angle 60
Insert Type Positive
Number of Edges 3
Relief Angle 5 Degree
Chipbreaker Type FX
Grade AC530U
Material Solid Carbide
Rake Angle 15 Degree
Brand Sumitomo
Insert Size 520.5
Product Name Turning Insert
Thickness 0.0625 Inch
