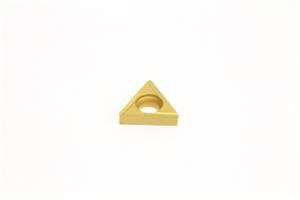

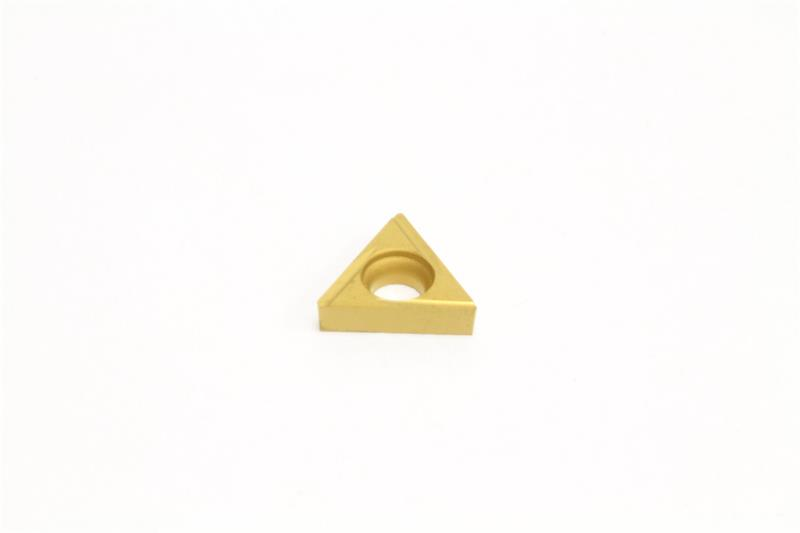

TBGT521 FX AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TBGT521LFX AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.0900 Inch
Rake Angle 15 Degree
Chipbreaker Type FX
Coating/Finish CVD
Material Solid Carbide
Shape Triangular
Insert Style TBGT
Insert Type Positive
Number of Edges 3
Relief Angle 5 Degree
Insert Size 521
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 60
Corner Radius 0.0156 Inch
Inscribed Circle 0.0156 Inch
Brand Sumitomo
Grade AC820P
Product Name Turning Insert
Thickness 0.0625 Inch
