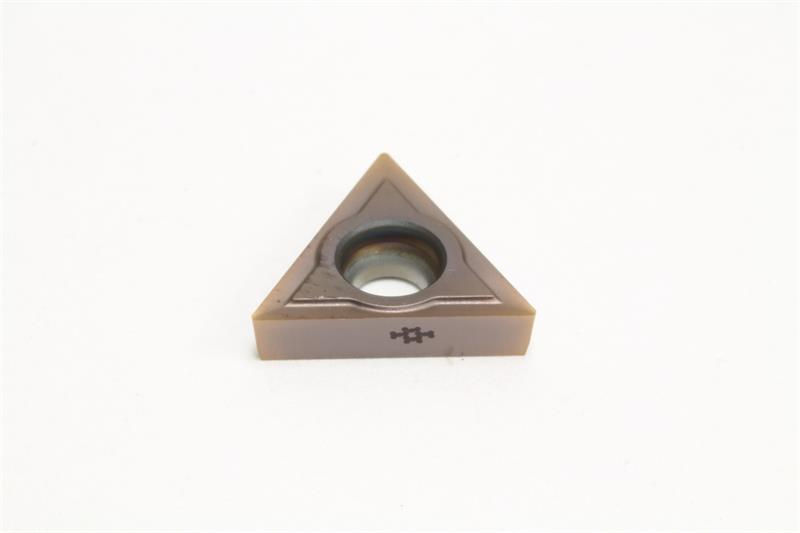

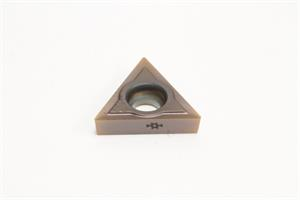

TCGT21.50 EFM AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert
- Item Code: TCGT21.50EFM AC530U
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Features
Back To Top- M = Negative nose radius tolerance (-0.0001€ to -0.0004€)
Tech Specs
Back To Top| Insert Style | TCGT |
|---|---|
| Brand | Sumitomo |
| Thickness | 0.0940 Inch |
| Inscribed Circle | 0.2500 Inch |
| Relief Angle | 7 Degree |
| Material | Solid Carbide |
| Chipbreaker Type | EFM |
| Grade | AC530U |
| Product Name | Turning Insert |
| Rake Angle | 6 Degree |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel |
| Coating/Finish | PVD |
| Included Angle | 60 |
| Insert Type | Positive |
| Mounting Hole Diameter | 0.1100 Inch |
| Shape | Triangular |
| Corner Radius | 0.0039 Inch |
| Insert Size | 21.50 |
| Number of Edges | 3 |
