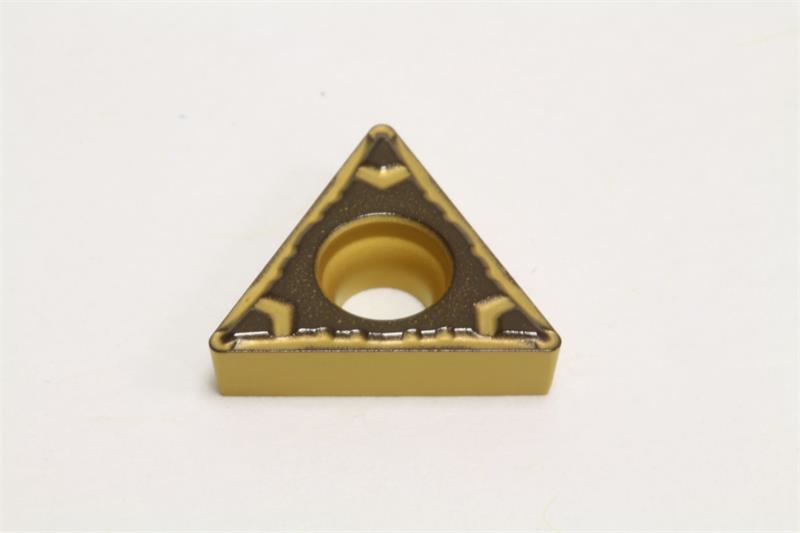

TCMT21.51 ELU AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TCMT21.51ELU AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 21.51
Brand Sumitomo
Included Angle 60
Product Name Turning Insert
Material Solid Carbide
Chipbreaker Type ELU
Insert Type Positive
Number of Edges 3
Thickness 0.0940 Inch
Corner Radius 0.0156 Inch
Insert Style TCMT
Mounting Hole Diameter 0.1100 Inch
Rake Angle 12 Degree
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.2500 Inch
Coating/Finish CVD
Grade AC630M
Relief Angle 7 Degree
