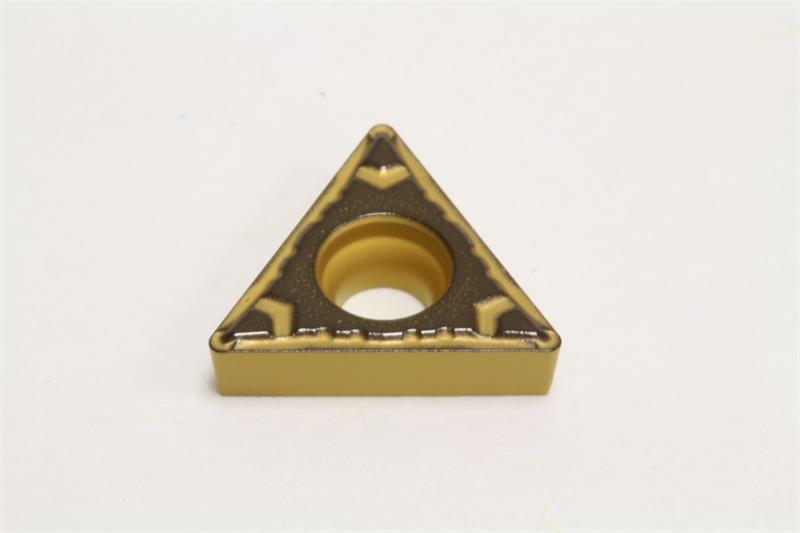

TCMT21.51 ELU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TCMT21.51ELU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Insert Style TCMT
Mounting Hole Diameter 0.1100 Inch
Shape Triangular
Material Solid Carbide
Rake Angle 12 Degree
Relief Angle 7 Degree
Grade AC820P
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Included Angle 60
Thickness 0.0940 Inch
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Chipbreaker Type ELU
Insert Size 21.51
Insert Type Positive
Number of Edges 3
