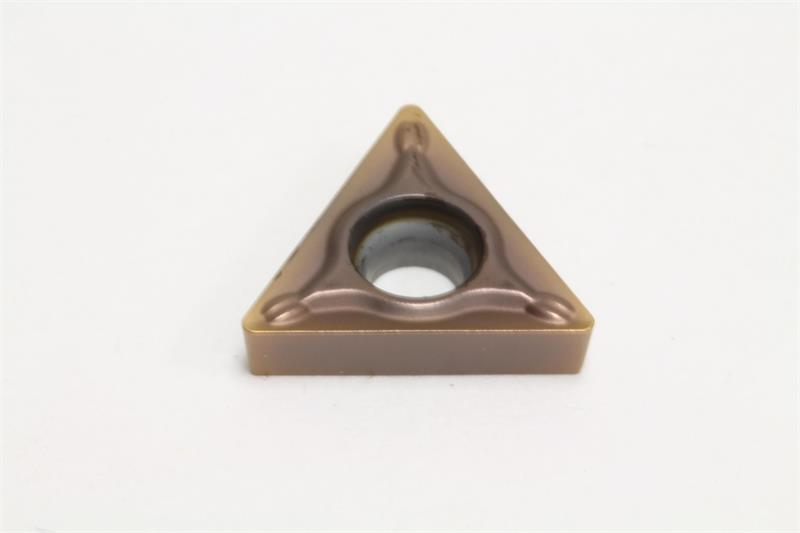

TCMT21.51 ESU AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TCMT21.51ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Number of Edges 3
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Thickness 0.0940 Inch
Brand Sumitomo
Insert Type Positive
Insert Style TCMT
Grade AC510U
Chipbreaker Type ESU
Included Angle 60
Insert Size 21.51
Material Solid Carbide
Mounting Hole Diameter 0.1100 Inch
Shape Triangular
Rake Angle 8 Degree
Relief Angle 7 Degree
