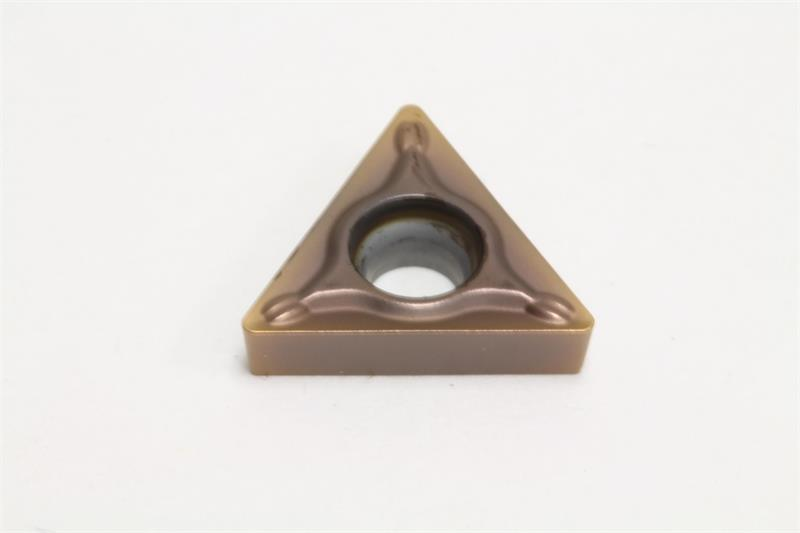

TCMT21.51 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TCMT21.51ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Coating/Finish PVD
Included Angle 60
Insert Size 21.51
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Relief Angle 7 Degree
Number of Edges 3
Insert Type Positive
Rake Angle 8 Degree
Chipbreaker Type ESU
Insert Style TCMT
Mounting Hole Diameter 0.1100 Inch
Product Name Turning Insert
Shape Triangular
Grade AC520U
Material Solid Carbide
Thickness 0.0940 Inch
