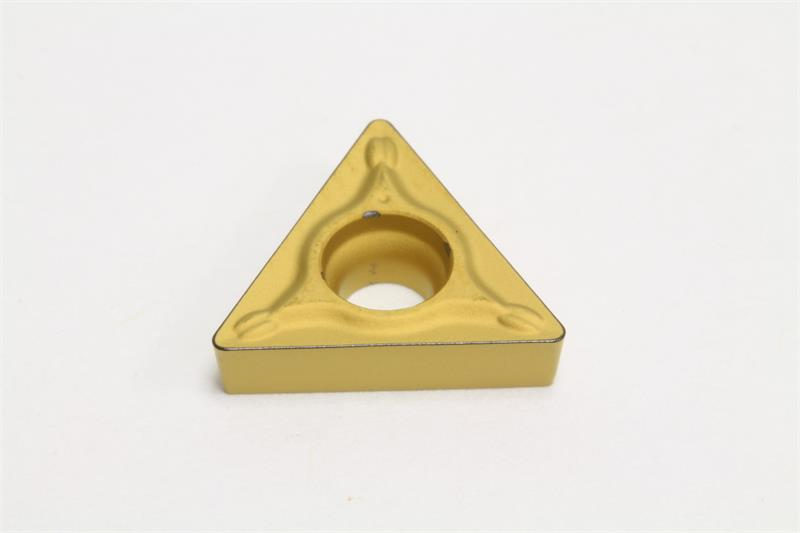

TCMT21.51 ESU AC610M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TCMT21.51ESU AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style TCMT
Corner Radius 0.0156 Inch
Grade AC610M
Relief Angle 7 Degree
Thickness 0.0940 Inch
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 60
Mounting Hole Diameter 0.1100 Inch
Shape Triangular
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Insert Size 21.51
Number of Edges 3
Rake Angle 8 Degree
Inscribed Circle 0.2500 Inch
Insert Type Positive
