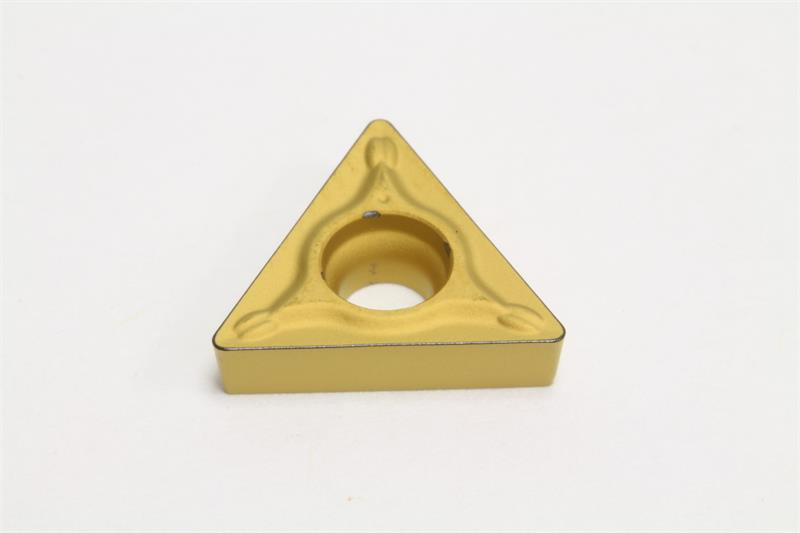

TCMT21.51 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TCMT21.51ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Inscribed Circle 0.2500 Inch
Product Name Turning Insert
Grade AC820P
Included Angle 60
Insert Type Positive
Corner Radius 0.0156 Inch
Insert Style TCMT
Mounting Hole Diameter 0.1100 Inch
Shape Triangular
Chipbreaker Type ESU
Thickness 0.0940 Inch
Brand Sumitomo
Rake Angle 8 Degree
Relief Angle 7 Degree
Insert Size 21.51
Material Solid Carbide
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
