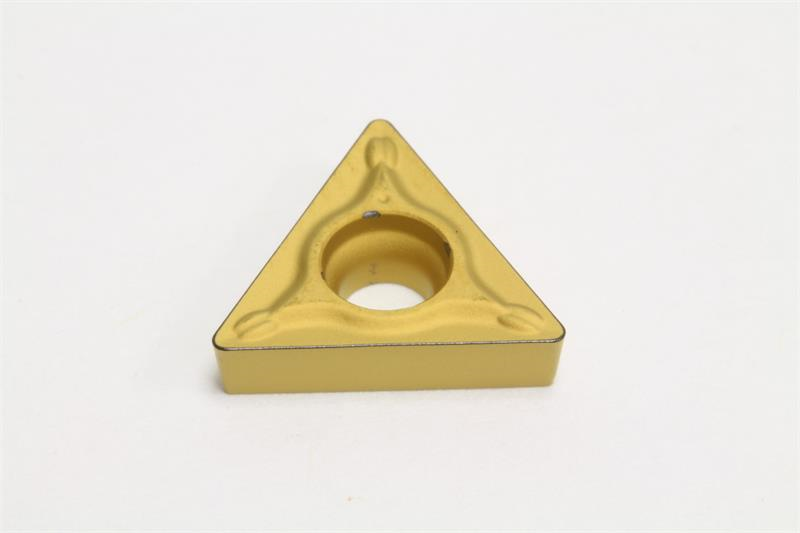

TCMT21.52 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TCMT21.52ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 21.52
Thickness 0.0940 Inch
Brand Sumitomo
Included Angle 60
Rake Angle 8 Degree
Number of Edges 3
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Inscribed Circle 0.2500 Inch
Material Solid Carbide
Insert Style TCMT
Insert Type Positive
Mounting Hole Diameter 0.1100 Inch
Shape Triangular
Chipbreaker Type ESU
Grade AC820P
Product Name Turning Insert
Corner Radius 0.0313 Inch
