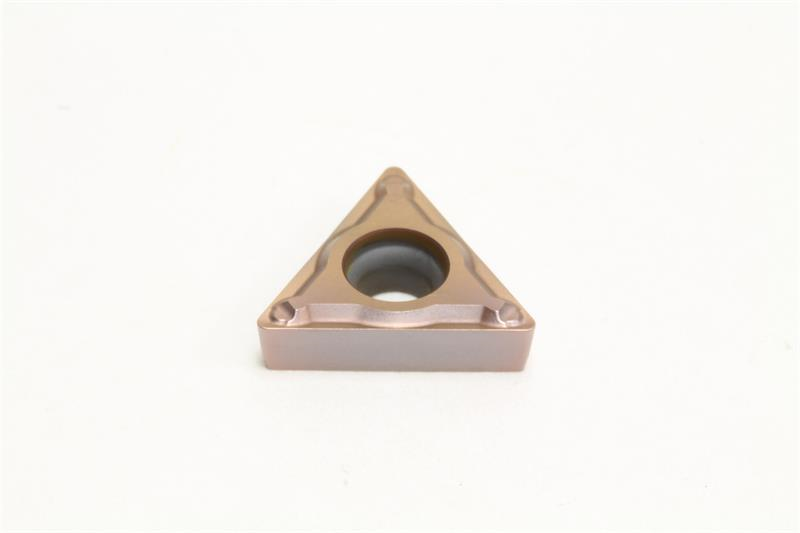

TCMT32.51 EFP T2000Z Grade, TiN/AIN Coated, Cermet Turning Insert

  • Item Code: TCMT32.51EFP-T2000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Chipbreaker Type EFP
Insert Style TCMT
Shape Triangular
Coating/Finish Cermet
Rake Angle 10 Degree
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Grade T2000Z
Included Angle 60
Inscribed Circle 0.3750 Inch
Insert Type Positive
Mounting Hole Diameter 0.1693 Inch
Number of Edges 3
Corner Radius 0.0156 Inch
Insert Size 32.51
Product Name Turning Insert
Thickness 0.0156 Inch
