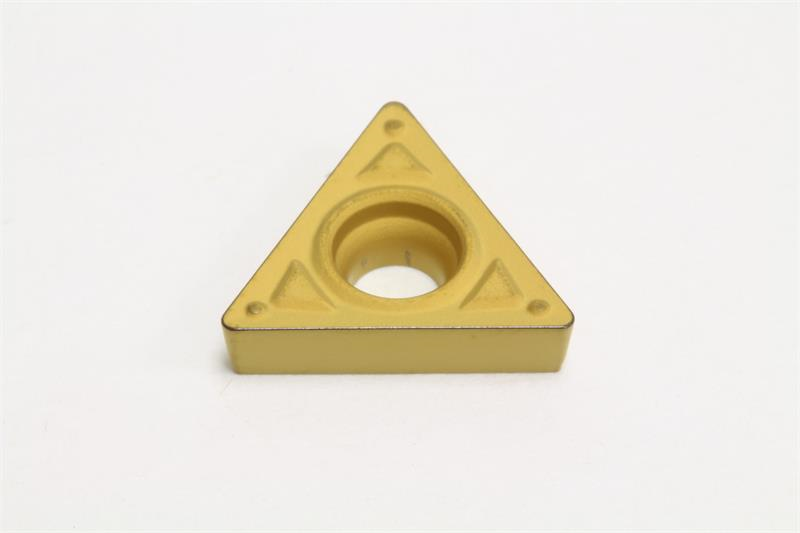

TCMT32.51 ENK AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TCMT32.51ENK AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Grade AC700G
Included Angle 60
Insert Size 32.51
Mounting Hole Diameter 0.1693 Inch
Material Solid Carbide
Relief Angle 7 Degree
Chipbreaker Type ENK
Coating/Finish Coated
Insert Style TCMT
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Shape Triangular
Inscribed Circle 0.3750 Inch
Insert Type Positive
Number of Edges 3
Brand Sumitomo
Product Name Turning Insert
