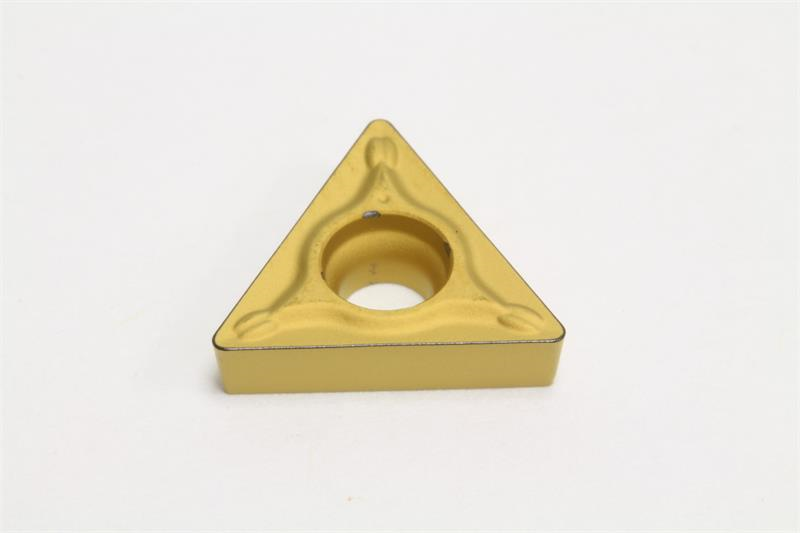

TCMT32.51 ESU AC610M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TCMT32.51ESU AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Insert Size 32.51
Material Solid Carbide
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 60
Rake Angle 8 Degree
Grade AC610M
Insert Style TCMT
Shape Triangular
Brand Sumitomo
Product Name Turning Insert
Thickness 0.0156 Inch
Chipbreaker Type ESU
Coating/Finish CVD
Inscribed Circle 0.3750 Inch
Insert Type Positive
Mounting Hole Diameter 0.1693 Inch
Number of Edges 3
