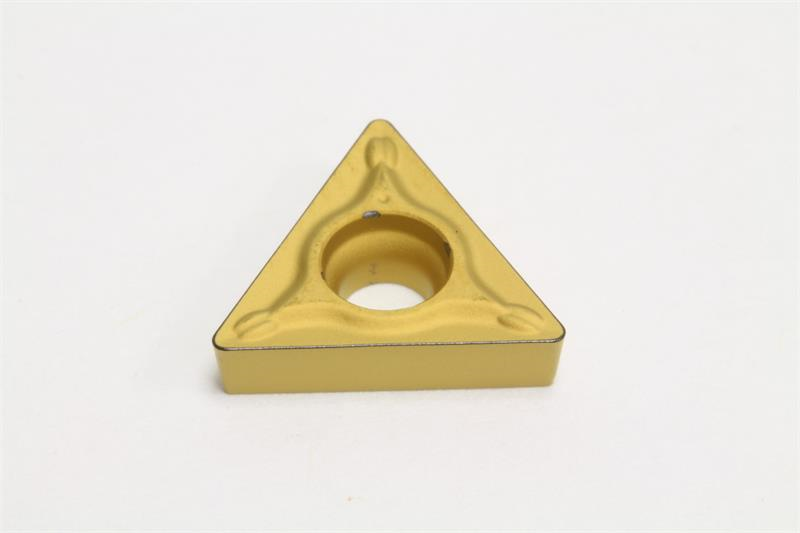

TCMT32.51 ESU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TCMT32.51ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Corner Radius 0.0156 Inch
Insert Style TCMT
Relief Angle 7 Degree
Shape Triangular
Included Angle 60
Material Solid Carbide
Number of Edges 3
Rake Angle 8 Degree
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Positive
Mounting Hole Diameter 0.1693 Inch
Grade AC820P
Thickness 0.0156 Inch
Inscribed Circle 0.3750 Inch
Insert Size 32.51
