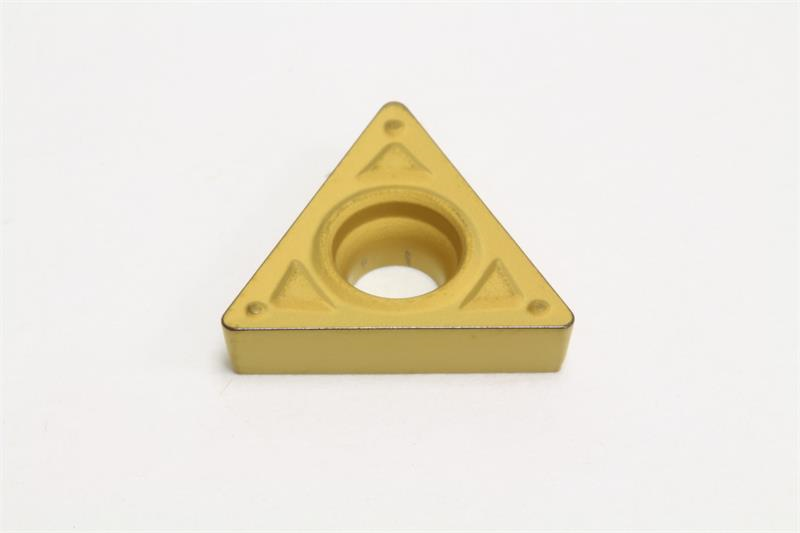

TCMT32.52 ENK AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TCMT32.52ENK AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Rake Angle 8 Degree
Included Angle 60
Material Solid Carbide
Number of Edges 3
Insert Type Positive
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Chipbreaker Type ENK
Corner Radius 0.0313 Inch
Insert Style TCMT
Shape Triangular
Coating/Finish Coated
Grade AC700G
Mounting Hole Diameter 0.1693 Inch
Insert Size 32.52
Relief Angle 7 Degree
