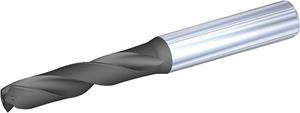

#3 (5.41 mm) x 66 mm OAL Carbide TiAIN 3xD 140 Deg. 2 Flute High Performance Drill
- Item Code: TDS401A05410 WP20PD
- Brand: WIDIA
- Unit Size: 1
Description
TOP DRILL S for steel is a high-performance solid carbide drill with an application-specific design. Although the point geometry is strong enough to drill stainless steel and cast iron, it is engineered to maximize performance when drilling steel. The WP20PD? grade, designed to resist high heat and wear, is the latest in WIDIA? technology. The two-margin design facilitates excellent hole quality and less friction when drilling steel at high speeds.
Tech Specs
Back To Top| Brand | WIDIA |
|---|---|
| Number of Flutes | 2 |
| Coating/Finish | TiAlN |
| Coolant Thru | YES |
| Cutting Direction | Right Hand |
| Decimal Diameter | 0.2130" |
| Overall Length Inch | 2.5984" |
| Material | Solid Carbide |
| Series | TDS401 |
| Overall Length Metric | 66.00 mm |
| Metric Diameter | 5.41 mm |
| Wire Diameter | #3 |
