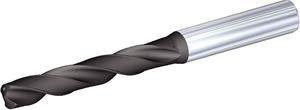

7/16 in. (11.113 mm) x 118 mm OAL Carbide TiAIN 5xD 140 Deg. 2 Flute with Through Coolant High Performance Drill
- Item Code: TDS402A11113 WP20PD
- Brand: WIDIA
- Unit Size: 1
Description
TOP DRILL S for steel is a high-performance solid carbide drill with an application-specific design. Although the point geometry is strong enough to drill stainless steel and cast iron, it is engineered to maximize performance when drilling steel. The WP20PD? grade, designed to resist high heat and wear, is the latest in WIDIA? technology. The two-margin design facilitates excellent hole quality and less friction when drilling steel at high speeds.
Tech Specs
Back To Top| Decimal Diameter | 0.4375" |
|---|---|
| Fractional Diameter | 7/16" |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Metric Diameter | 11.11 mm |
| Overall Length Inch | 4.6457" |
| Series | TDS402 |
| Coating/Finish | TiAlN |
| Coolant Thru | YES |
| Overall Length Metric | 118.00 mm |
| Brand | WIDIA |
| Number of Flutes | 2 |
