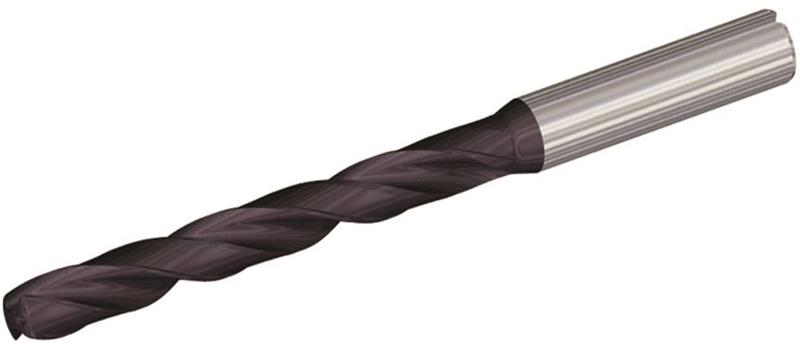

5/16 Solid Carbide TiAlN Coated 2-Flute Coolant Thru 12xD Extra Long Drill
- Item Code: TDS504A07938 WU20PD
- Brand: WIDIA-Hanita
- Unit Size: 1
| Flute Length |
4.4882 Inch |
| Overall Length Decimal |
6.0236" |
| Point Length |
0.0663 Inch |
| Direction of Cut |
Right Hand |
| Metric Diameter |
7.938 mm |
| Brand |
WIDIA-Hanita |
| Flute Style |
Helix |
| Grade |
WU20PD |
| Product Category |
Cutting Tools |
| Shank Diameter |
0.3150 Inch |
| Number of Flutes |
2 |
| Unit of Measure |
Inch |
| Product Name |
Extra Long Drill |
| Coolant Through (Yes/No) |
Yes |
| Decimal Diameter |
0.3125" |
| Fractional Diameter |
5/16" |
| Material |
Solid Carbide |
| Shank Length |
1.4173 Inch |
| Coating/Finish |
TiAlN |
| Point Angle |
132 Degree |
| Shank Style |
Straight |
