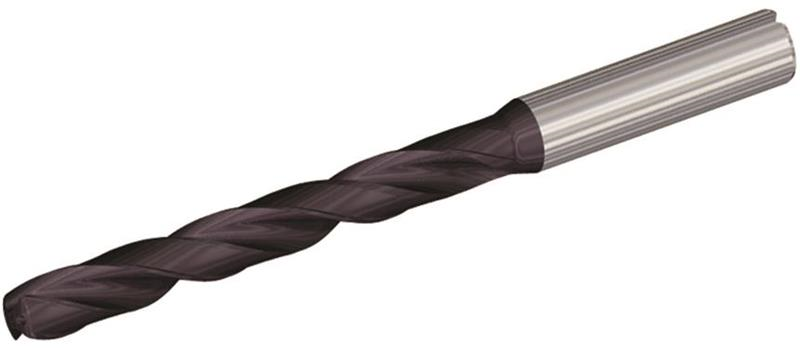

3/8 Solid Carbide TiAlN Coated 2-Flute Coolant Thru 12xD Extra Long Drill
- Item Code: TDS504A09525 WU20PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
5.5118 Inch |
| Grade |
WU20PD |
| Point Angle |
132 Degree |
| Point Length |
0.0799 Inch |
| Brand |
WIDIA |
| Fractional Diameter |
3/8" |
| Overall Length Decimal |
7.2835" |
| Product Name |
Extra Long Drill |
| Coating/Finish |
TiAlN |
| Decimal Diameter |
0.3750" |
| Shank Diameter |
0.3937 Inch |
| Material |
Solid Carbide |
| Number of Flutes |
2 |
| Shank Length |
1.5748 Inch |
| Shank Style |
Straight |
| Unit of Measure |
Inch |
| Direction of Cut |
Right Hand |
| Flute Style |
Helix |
| Metric Diameter |
9.525 mm |
| Coolant Through (Yes/No) |
Yes |
