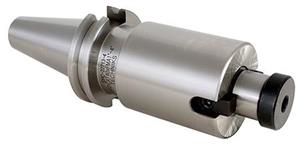

CAT40 Shell Mill Arbor 1.0 Inch - 6.0 Inch
- Item Code: TEK 22713-6
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Hub Diameter (mm) | 25.4 |
|---|---|
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Hub Diameter (in) | 1 |
| Coolant Supply | Optional through Arbor Screw |
| Pilot Length (in) | 0.69 |
| Gage Length (in) | 6 |
| Gage Length (mm) | 152.4 |
| Overall Diameter (mm) | 63.5 |
| Brand | Techniks |
| Gage Length-Face Contact (mm) | 149.23 |
| Type | Face Mill Arbor |
| Body Width (in) | 2.2 |
| Body Width (mm) | 55.9 |
| Gage Length-Face Contact (in) | 5.875 |
| Taper Type | CAT40 |
| Pilot Length (mm) | 17.5 |
