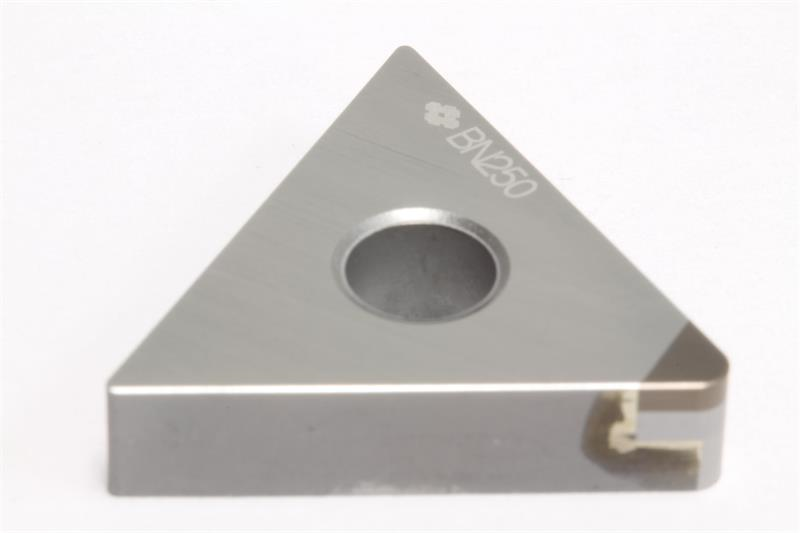

TNMA322 BN250 Grade, PCBN Turning Insert

  • Item Code: TNMA332 BN250
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Insert Style TNMA
Corner Radius 0.0313 Inch
Insert Size 332
Shape Triangular
Max Depth of Cut 0.0200 Inch
Relief Angle 0 Degree
Chipbreaker Type Full Tip
Grade BN250
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Brand Sumitomo
Included Angle 60
Inscribed Circle 0.3750 Inch
Mounting Hole Diameter 0.1500 Inch
Coating/Finish None
Insert Type Negative
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Material PCBN
