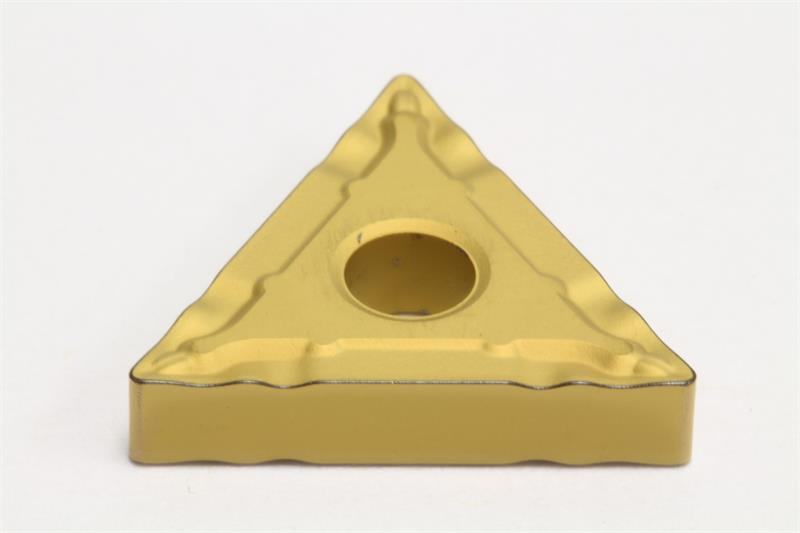

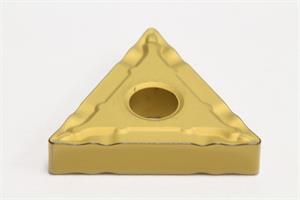

TNMG322 ESX AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG322ESX AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Grade AC820P
Mounting Hole Diameter 0.1500 Inch
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Product Name Turning Insert
Thickness 0.1250 Inch
Insert Style TNMG
Chipbreaker Type ESX
Material Solid Carbide
Rake Angle 3 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Number of Edges 3
Included Angle 60
Insert Size 322
Insert Type Negative
Relief Angle 0 Degree
