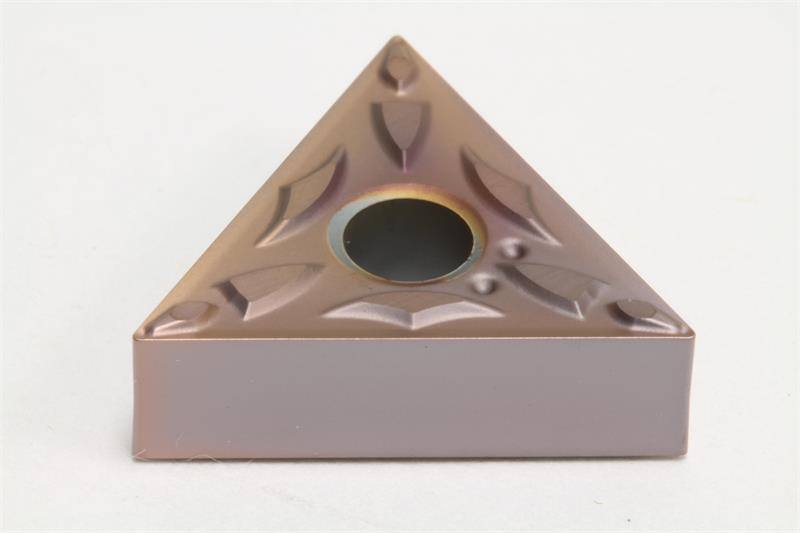

TNMG331 EFA T2000Z Grade, TiN/AIN Coated, Cermet Turning Insert

  • Item Code: TNMG331EFA T2000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Chipbreaker Type EFA
Coating/Finish Cermet
Inscribed Circle 0.3750 Inch
Insert Style TNMG
Number of Edges 3
Rake Angle 20 Degree
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Brand Sumitomo
Insert Size 331
Relief Angle 0 Degree
Included Angle 60
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade T2000Z
