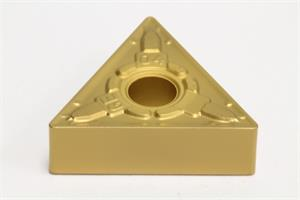

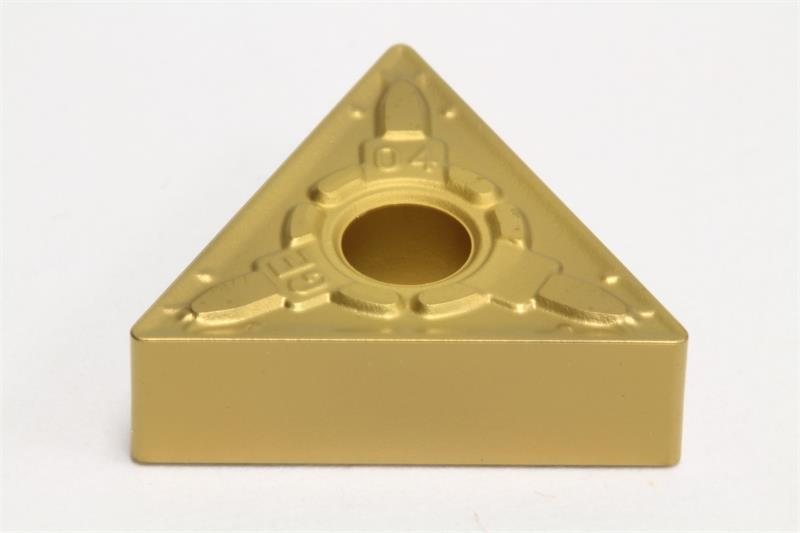

TNMG331 EGE AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG331EGE AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Mounting Hole Diameter 0.1500 Inch
Shape Triangular
Insert Type Negative
Material Solid Carbide
Product Name Turning Insert
Thickness 0.1875 Inch
Rake Angle 3 Degree
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EGE
Coating/Finish CVD
Corner Radius 0.0156 Inch
Included Angle 60
Inscribed Circle 0.3750 Inch
Number of Edges 3
Brand Sumitomo
Insert Size 331
Insert Style TNMG
