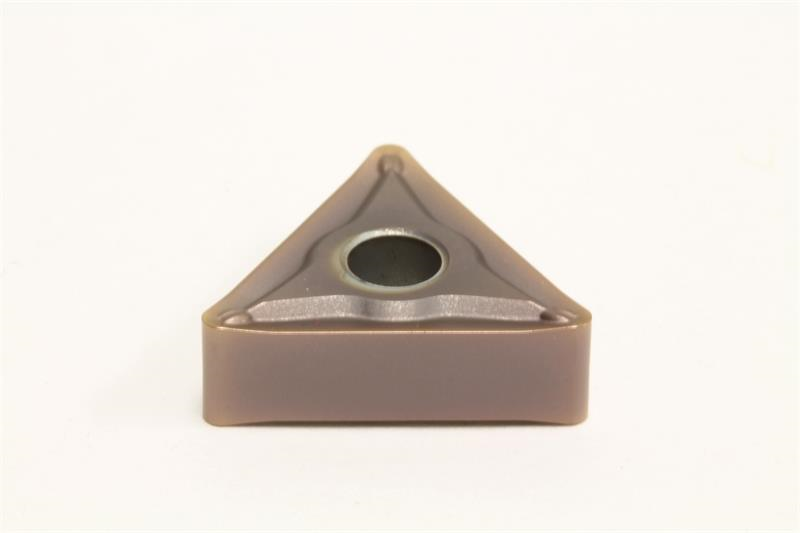

TNMG331 ESU AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TNMG331ESU AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.1500 Inch
Chipbreaker Type ESU
Shape Triangular
Insert Type Negative
Material Solid Carbide
Grade AC530U
Relief Angle 0 Degree
Corner Radius 0.0156 Inch
Included Angle 60
Inscribed Circle 0.3750 Inch
Number of Edges 3
Rake Angle 13 Degree
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Coating/Finish PVD
Insert Size 331
Insert Style TNMG
Product Name Turning Insert
