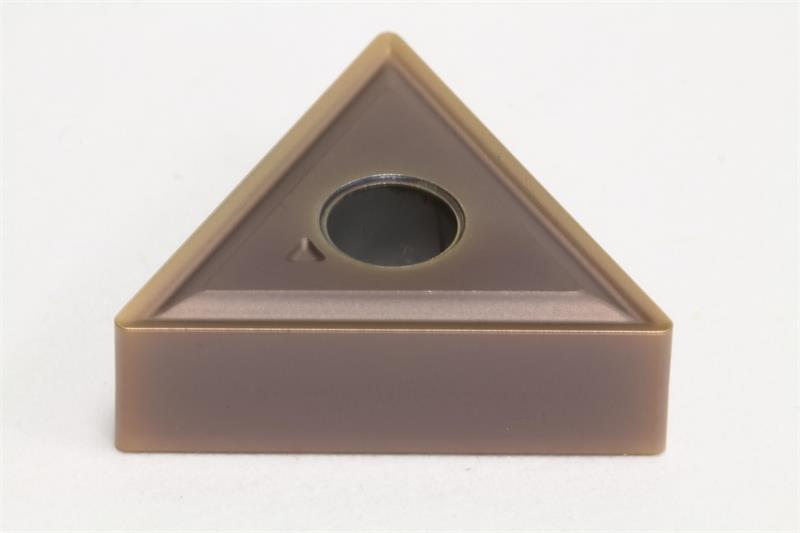

TNMG332 EEX AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TNMG332EEX AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Included Angle 60
Insert Size 332
Mounting Hole Diameter 0.1500 Inch
Brand Sumitomo
Chipbreaker Type EEX
Insert Style TNMG
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC510U
Rake Angle 16 Degree
Shape Triangular
Inscribed Circle 0.3750 Inch
Number of Edges 3
Insert Type Negative
Relief Angle 0 Degree
