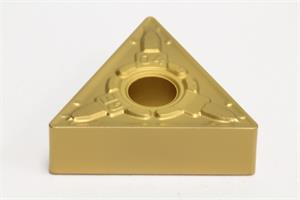

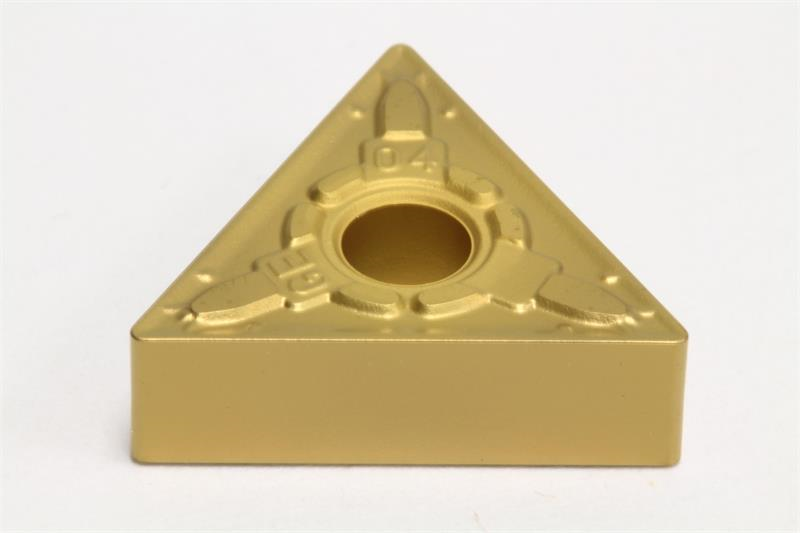

TNMG332 EGE AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG332EGE AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type EGE
Corner Radius 0.0313 Inch
Included Angle 60
Insert Size 332
Grade AC820P
Mounting Hole Diameter 0.1500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Shape Triangular
Material Solid Carbide
Rake Angle 3 Degree
Inscribed Circle 0.3750 Inch
Number of Edges 3
Brand Sumitomo
Insert Style TNMG
Insert Type Negative
Relief Angle 0 Degree
