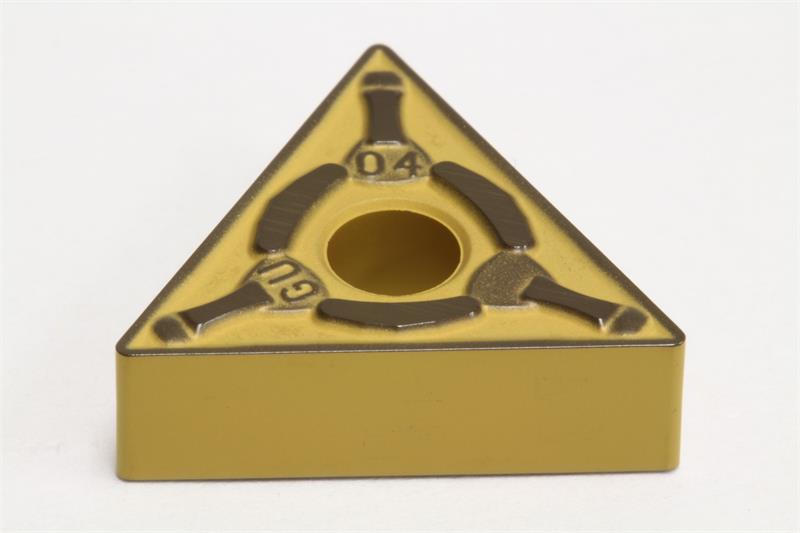

TNMG332 EGU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG332EGU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Included Angle 60
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Brand Sumitomo
Product Name Turning Insert
Thickness 0.1875 Inch
Rake Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Inscribed Circle 0.3750 Inch
Material Solid Carbide
Number of Edges 3
Chipbreaker Type EGU
Insert Style TNMG
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Insert Size 332
Shape Triangular
