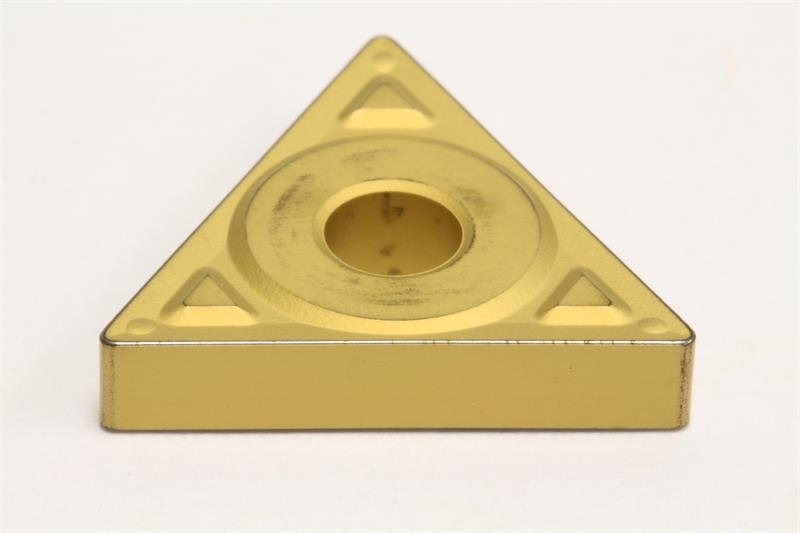

TNMG332 ENK AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG332ENK AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Mounting Hole Diameter 0.1500 Inch
Number of Edges 3
Coating/Finish CVD
Material Solid Carbide
Shape Triangular
Corner Radius 0.0313 Inch
Insert Size 332
Relief Angle 0 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style TNMG
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Chipbreaker Type ENK
Included Angle 60
Rake Angle 10 Degree
