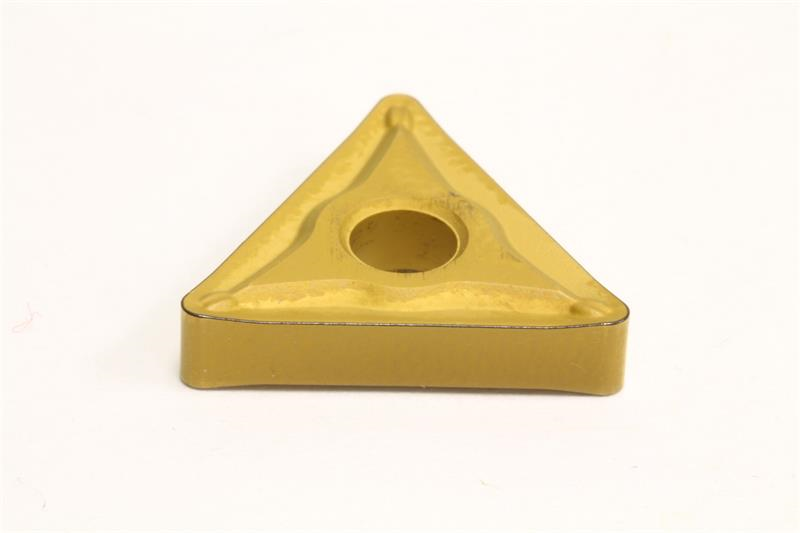

TNMG332 ESU AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG333ESU AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 333
Coating/Finish CVD
Material Solid Carbide
Shape Triangular
Relief Angle 0 Degree
Included Angle 60
Insert Type Negative
Grade AC830P
Inscribed Circle 0.3750 Inch
Number of Edges 3
Rake Angle 13 Degree
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Chipbreaker Type ESU
Corner Radius 0.0469 Inch
Insert Style TNMG
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
