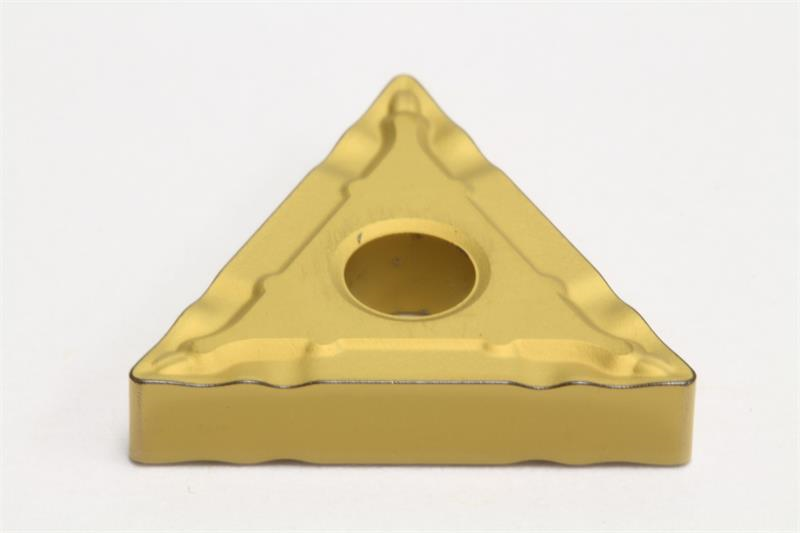

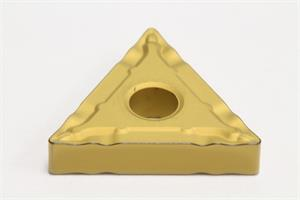

TNMG431 ESX AC7000G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TNMG431ESX AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Insert Type Negative
Shape Triangular
Grade AC700G
Corner Radius 0.0156 Inch
Insert Size 431
Chipbreaker Type ESX
Included Angle 60
Insert Style TNMG
Material Solid Carbide
Rake Angle 3 Degree
Thickness 0.1875 Inch
Mounting Hole Diameter 0.2031 Inch
Number of Edges 3
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
