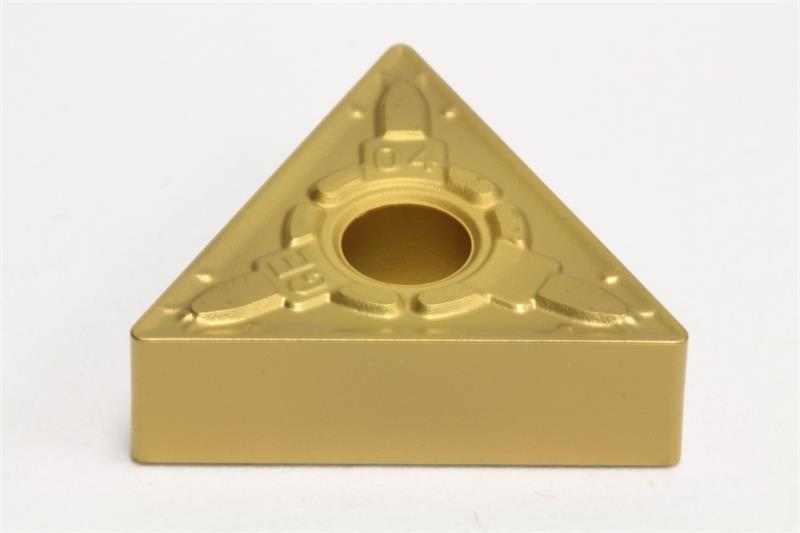

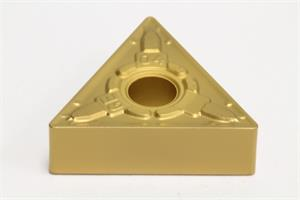

TNMG432 EGE AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG432EGE AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Shape Triangular
Insert Type Negative
Material Solid Carbide
Product Name Turning Insert
Thickness 0.1875 Inch
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Rake Angle 3 Degree
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Inscribed Circle 0.5000 Inch
Brand Sumitomo
Insert Style TNMG
Included Angle 60
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EGE
Coating/Finish CVD
