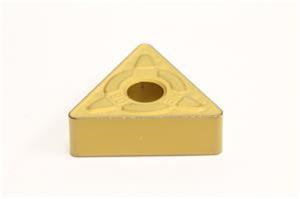

TNMG432 EME AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG432EME-AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EME
Insert Size 432
Insert Style TNMG
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Included Angle 60
Product Name Turning Insert
Thickness 0.1875 Inch
Material Solid Carbide
Number of Edges 3
Inscribed Circle 0.5000 Inch
Grade AC810P
Corner Radius 0.0313 Inch
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Coating/Finish CVD
Rake Angle 4 Degree
