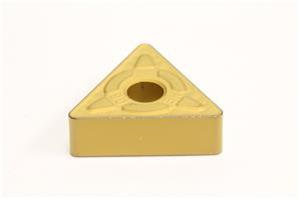

TNMG432 EME AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG432EME-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Chipbreaker Type EME
Insert Size 432
Insert Style TNMG
Mounting Hole Diameter 0.2031 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Included Angle 60
Rake Angle 4 Degree
Material Solid Carbide
Number of Edges 3
Coating/Finish CVD
Shape Triangular
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Relief Angle 0 Degree
Grade AC820P
Product Name Turning Insert
