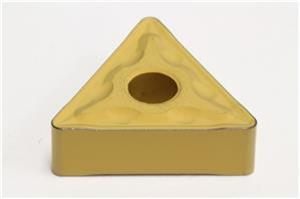

TNMG433 EMU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TNMG433EMU-AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Shape Triangular
Insert Size 433
Material Solid Carbide
Rake Angle 4 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Insert Type Negative
Grade AC700G
Included Angle 60
Brand Sumitomo
Corner Radius 0.0469 Inch
Insert Style TNMG
Product Name Turning Insert
Chipbreaker Type EMU
Number of Edges 3
Thickness 0.1875 Inch
