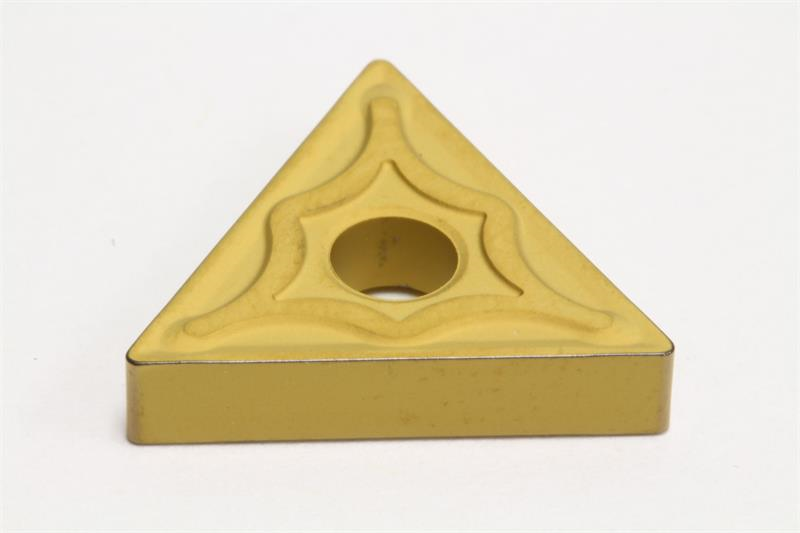

TNMG433 EUX AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TNMG433EUX AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish Coated
Included Angle 60
Insert Size 433
Insert Type Negative
Material Solid Carbide
Shape Triangular
Chipbreaker Type EUX
Product Name Turning Insert
Rake Angle 0 Degree
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC700G
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Number of Edges 3
Brand Sumitomo
Corner Radius 0.0469 Inch
Insert Style TNMG
Inscribed Circle 0.5000 Inch
