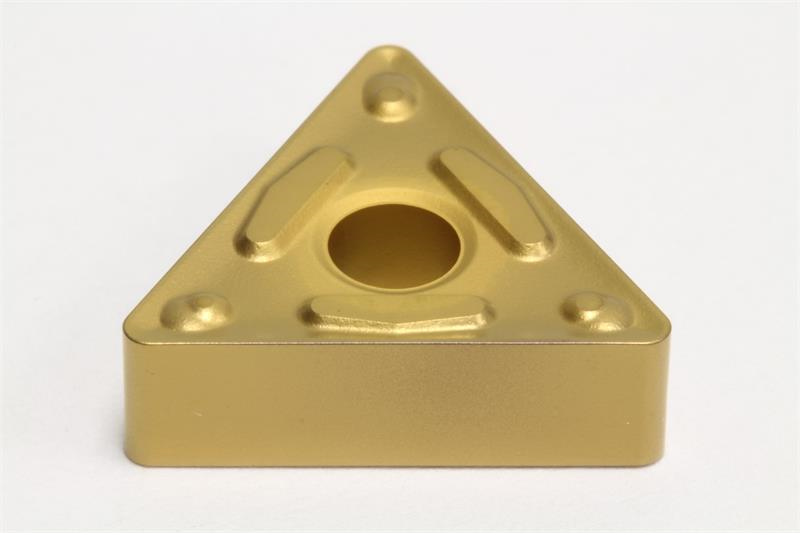

TNMG542 ENG AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TNMG542ENG AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 542
Insert Style TNMG
Grade AC830P
Number of Edges 3
Thickness 0.2500 Inch
Coating/Finish CVD
Shape Triangular
Corner Radius 0.0313 Inch
Rake Angle 4 Degree
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
Inscribed Circle 0.6250 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 60
Insert Type Negative
Mounting Hole Diameter 0.2500 Inch
Chipbreaker Type ENG
Material Solid Carbide
