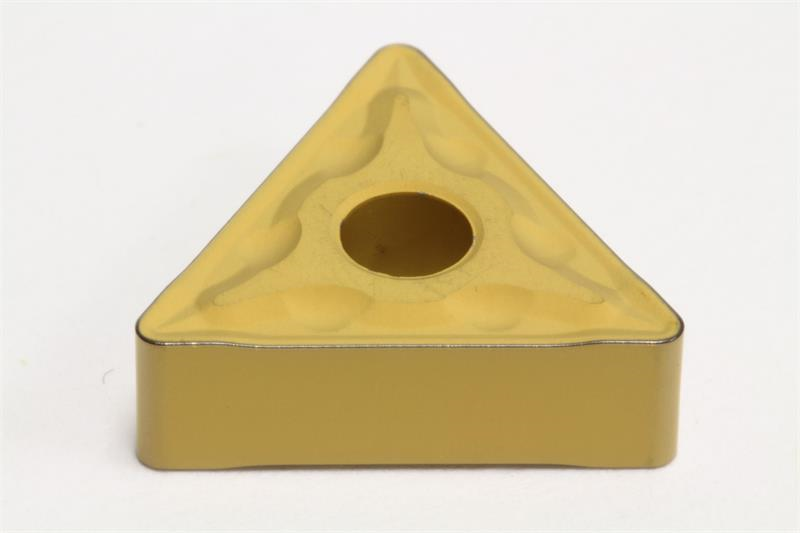

TNMG543 EMU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TNMG543EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Rake Angle 4 Degree
Chipbreaker Type EMU
Coating/Finish Coated
Inscribed Circle 0.6250 Inch
Insert Type Negative
Mounting Hole Diameter 0.2500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 543
Shape Triangular
Corner Radius 0.0469 Inch
Included Angle 60
Insert Style TNMG
Material Solid Carbide
Thickness 0.2500 Inch
Number of Edges 3
Relief Angle 0 Degree
Brand Sumitomo
Grade AC700G
Product Name Turning Insert
