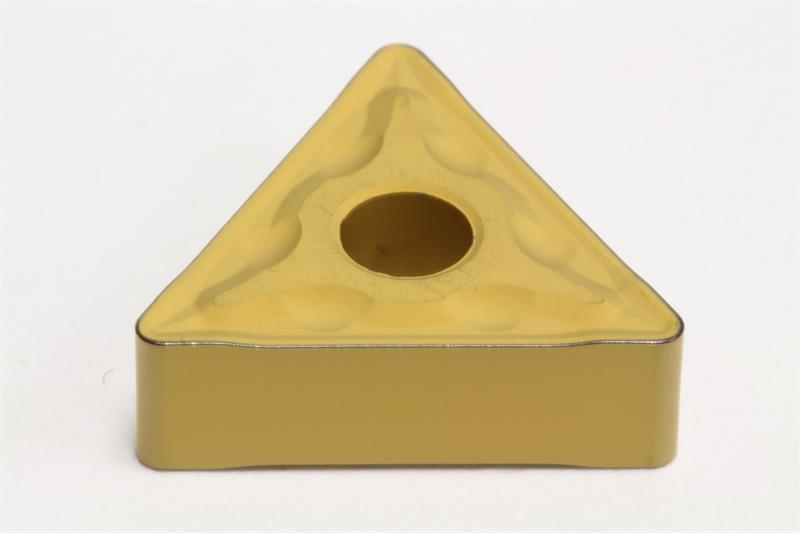

TNMG544 EMU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TNMG544EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 60
Number of Edges 3
Chipbreaker Type EMU
Brand Sumitomo
Corner Radius 0.0625 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.6250 Inch
Insert Style TNMG
Mounting Hole Diameter 0.2500 Inch
Rake Angle 4 Degree
Thickness 0.2500 Inch
Coating/Finish Coated
Grade AC700G
Insert Size 544
Material Solid Carbide
Product Name Turning Insert
Shape Triangular
Insert Type Negative
Relief Angle 0 Degree
